Pultec EQP-Style PCB Set (G-Pultec layout)

A clone of the Pultec EQP tube equalizer. It is a replica of the G-Pultec design and layout.

WHAT IS IN THE SET

- 2 filter boards

- 1 PSU board

PCB SET ONLY

This is a PCB set only. It does not include components, a case or a front panel.

CHOOSE YOUR FILTER BOARD

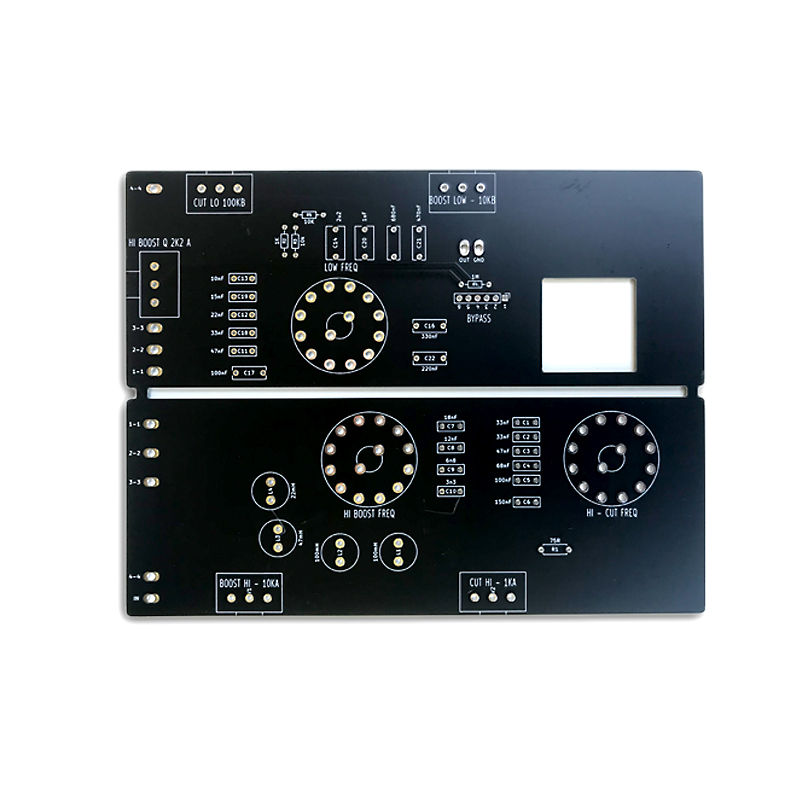

- Conventional (black): footprint for Tokko inductors.

- Modified (red): footprint for Don Audio inductors (G-Pultec inductor find it here), with an added gain adjustment trim pot.

OPTIONAL: INPUT AND OUTPUT TRANSFORMERS

You can add Lundahl LL5402 audio transformers when you order.

NEXT STEPS

- G-Pultec 19" front panel 2HE

- G-Pultec front panel and case

- Pultec style EQ assembled unit

DOCS

Gyraf schematic and the GroupDIY build thread: see Product Info below.

QUESTIONS?

Write to creativeclowns.info@gmail.com
